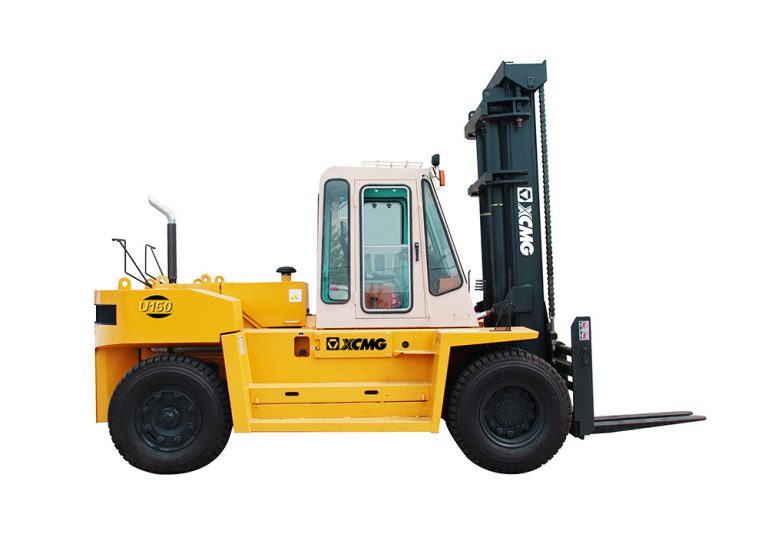

Xe nâng 15 tấn – FD150-A/FD150-JP

Xe nâng 15 tấn FD150-A/FD150-JP hãng XCMG, chạy bằng dầu. Sản phẩm được chuyên dùng trong các nhà máy thép công nghiệp sản xuất theo tiêu chuẩn Châu Âu.

Thông Số Kỹ Thuật Xe Nâng 15 Tấn FD150-A/FD150-JP

MODEL		FD150	FD150-JP
rated capacity	kg	15000	15000
load centre	mm	600	600
max lifting height	mm	4000	4000
overall height(lifting)	mm	5884	5884
overall height(lowering)	mm	3884	3884
mast inclination(F/B)	*	6\12	6\12
fork length	mm	1500	1500
lifting speed(loaded)	mm/s	290	280
lifting speed(unloaded)	mm/s	320	310
travelling speed(loaded)	km/h	26	25
travelling speed(unloaded)	km/h	27	27
overall length	mm	6720	6325
overall width	mm	2460	2460
overall height(over head)	mm	2875	2875
service weight		17860	17800
shift type		Mechanical	Electrodynamic
brake operation type(driving brake)		air-boost	air-boost
brake operation type(parking brake)		drum brake	drum brake
power type		Diesel	Diesel
model		CA6DE1	Diesel Engine QSB6.7-C185
manufacturer		Dachai	USA CUMMINS
transimission type		Hydraulic	Hydraulic
front tyre(pneumatic)		12.00-20-18PR
rear tyre(pneumatic)		12.00-20-18PR
