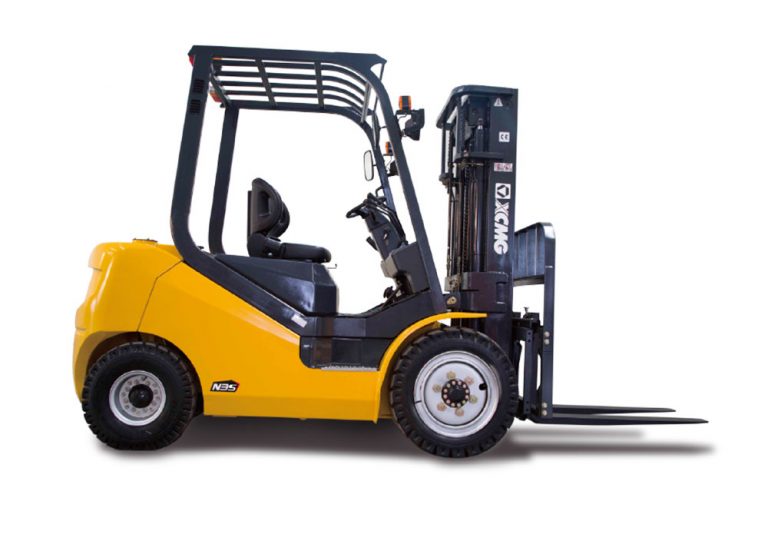

Xe nâng 3.5 tấn – N35

Sản phẩm xe nâng 3.5 tấn do hãng XCMG sản xuất, sử dụng động cơ Mitsubishi Mitsubishi S4S(EuⅢ) giúp tiết kiệm được nhiều nhiên liệu.

Thông Số Sản Phẩm Xe Nâng 3.5 tấn XCMG

Model		FD35T-F	FD35T-JB	FD35T-JE	FD30T-JM	FD30T-JJ
Power Type		Diesel
Rated Load Capacity	Q(kg)	3500
Load Centre	C(mm)	500
Rated Lift Height	H3(mm)	3000
Free Lift Height	H2(mm)	100
Fork Size (L×W×T)	mm	1070×125*50
Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°
Fork Overhang (Wheel Center to Fork Face)	X1(mm)	484
Rear Overhang	X2(mm)	635
Ground Clearance (Bottom of Mast)	H7(mm)	145
Length to Face of Fork (Without Fork)	L1(mm)	2775
Overall Width	B1(mm)	1225
Mast Lowered Height	H1(mm)	2070
Mast Extended Height (With Backrest)	H4(mm)	4070
Overhead Guard Height	H5(mm)	2235
Travel Speed (No Load)	km/h	19
Lifting Speed (Full Load)	mm/sec	380
Lowering Speed (Full Load)	mm/sec	450
Engine Model		C490BPG -37(EuⅢ)	C240PKJ30 (EuⅢ)	4TNE98 (EuⅢ & EPAⅢ)	Mitsubishi S4S(EuⅢ)	4JG2PE-01
Engine Manufacturer		XINCHAI	ISUZU	YANMAR	Mitsubishi	ISUZU
Rated Output / r.p.m.	kw	36.8/2650	34.5/3500	44.4/2300	35.4/2250	44.9/2450
Rated Torque / r.p.m.	N·m	156/1800	139/1800	187-307/1700	177/1700	184.7/1700
